TeraFlex Jeep JK High Steer System & Drag Link Flip Kit

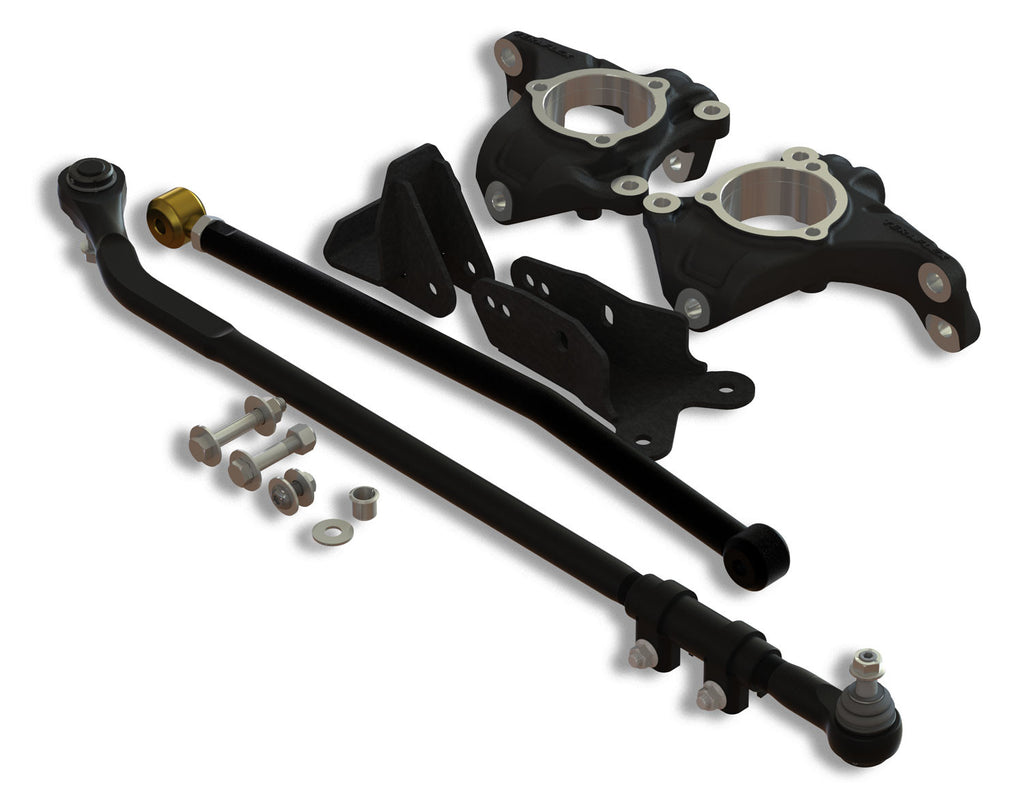

The TeraFlex JK high steer system is a complete solution that addresses all areas of concern when performing a high steering upgrade on JK Wranglers. The high steer knuckles are cast from heavy duty ductile iron and features reinforcements in key section areas that are prone to stress and deflection, and provides a heavy duty solution for several weak vulnerabilities found in the stock JK axle steering configuration. The high steer knuckle increases tie rod ground clearance by over 1-1/8” to reduce tie rod damage and bending. The TeraFlex JK drag link flip kit relocates the drag link over the knuckle, and bolts directly to the new high steer knuckle. The HD drag link is 50% stronger than the factory drag link to help eliminate front end shimmy and other alignment issues. The complete drag link is fully forged to eliminate any excess movement during hard steering maneuvers and utilizes a factory style adjusting collar and pinch clamp for simple adjustments. The included frame side trackbar drop bracket is used to keep steering geometry correct, and a frame brace strengthens the frame to further reduce any front end shimmy or excess movement. This kit is designed to work perfectly on JK wranglers with 4-6” of lift, and will maintain steering geometry at the correct angles for superior highway drivability. This kit includes one driver high steer knuckle, one passenger high steer knuckle, complete flipped drag link, front trackbar drop bracket, and frame brace kit. Installation does not require any cutting or removal of factory bracketry, welding is required. Fits all JK Wrangler models including Rubicon and Unlimited. Note: A minimum of 17” diameter wheels with no more than 5" backspacing must be used with the JK high steer knuckle kit.
